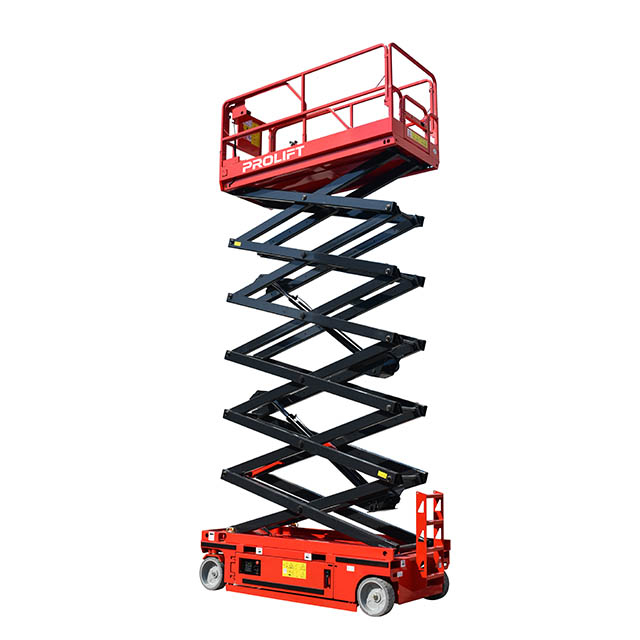

Aerial Platforms PLAP-12X

SIZE

Max.Working Height (A)

15.8m

Max.Platform Floor Height (B)

13.8m

Overall Lenght with Ladder (C)

2850mm

Overall Lenght  (D)

1310mm

Overall Height

2600mm

Overall Height Folding Fence(E)

2060mm

Platform Size Lenght/Width (F)

2700×1110mm

platform Extension size (G)

900mm

Wheel Base

2280mm

Ground Clearance Lowered/Raised

100/15mm

PARAMETER

Safe Working Load

230kg

S.W.L on Extension

110kg

Max. Working Number

2

minimum turing radius(inside/outside)

0m/2.4m

Lifting Motor

24V/4.5KW

Travel Speed Stowed/Raised

3.5/0.8km/h

Gradeability

25%

Max. Working Slope

X1.5°/Y3°

Wheels

φ381*127mm

Net weight

3670kg

POWER

Batteries

4×6V/240Ah

Integrated Charger

24V/30A

Driver

Hydraulic Driver
