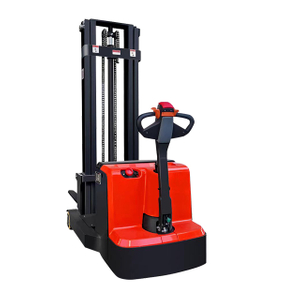

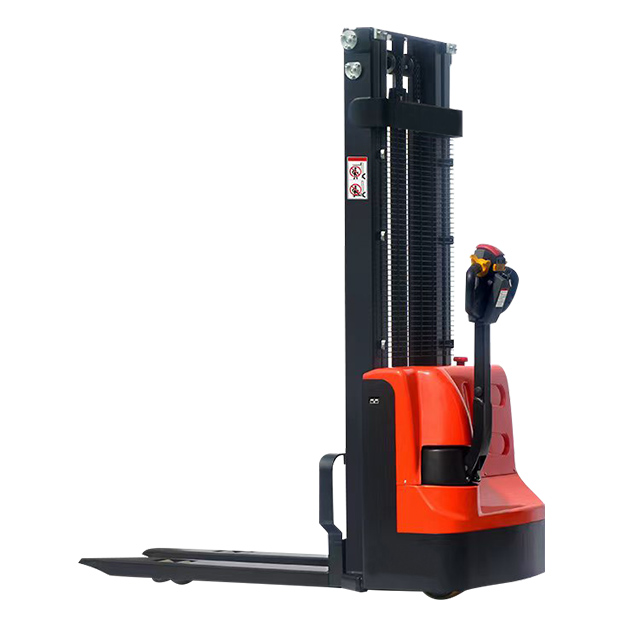

MODEL |
| PLPS-12J | PLPS-12JD | PLPS-15J |
Operation |
| Pedestrian propelled | Pedestrian propelled |
Rated traction weight | Q(kg) | 1200 | 1500 |
Mast type |
| Single mast | 2-Stage STD | Single column | Single mast | 2-Stage STD |
Lift | h3(mm) |
| 2000 | 2500 | 3000 | 3300 | 3500 | 1600 | 1600 | 2000 | 2500 | 3000 | 3500 |
Capacity at highest height | kg | 1200 | 1050 | 900 | 750 | 660 | 600 | 1200 | 1500 | 1300 | 1100 | 900 | 750 |
Service weightwith battery | kg | 425 | 441 | 453 | 465 | 472 | 477 | 395 | 430 | 471 | 483 | 495 | 507 |
Load centre | c(mm) | 600 | 600 |
Axle centre to fork face | x(mm) | 710 | 720 |
Wheel base | y(mm) | 1154 | 1031 | 1167 |
Controller |
| CURTIS | CURTIS |
WHEELS |
|
|
|
Wheels type |
| Polyurethane | Polyurethane |
Driving wheel size | φ×w(mm) | φ210×70 | φ210×70 |
Bearingwheel size | φ×w(mm) | φ80×70 | φ80×70 |
Additionalwheels(dimensions) | φ×w(mm) | φ150×58 | φ115×55 |
Wheels,number front/rear(x=driven) |
| 1x+1/4 | 1x+1/4 |
DIMENSIONS |
|
|
|
|
Height ofmast,lowered | hl(mm) | 2014 | 1494 | 1744 | 1994 | 2144 | 2244 | 1990 | 2014 | 1495 | 1745 | 1995 | 2245 |
Height ofmast,extended | h4(mm) | 2014 | 2424 | 2924 | 3424 | 3724 | 3924 | 2060 | 2014 | 2424 | 2924 | 3424 | 3924 |
Fork Height,Lowered | h13(mm) | 86 | 86 |
Overall length | l1(mm) | 1755 | 1632 | 1740 |
Length to fork face | 12(mm) | 605 | 482 | 590 |
Overallwidth | bl/b2 | 795 | 795 |
Fork dimensions | s/e/(mm) | 60/160/1150 | 60/160/1150 |
Width of forks | b5(mm) | 570/650/695 | 570/650/695 |
Min.Groundclearance | m2(mm) | 24 | 26 |
Aisle widthwith pallet 1000x1200acrossforks | Ast(mm) | 2068 | 2048 | 2074 |
Aisle width with pallet 800×1200 along forks | Ast(mm) | 2034 | 2014 | 2040 |
Min.Turning radius | Wa(mm) | 1366 | 1316 | 1342 |
PERFORMANCE |
|
|
|
|
Travel spees,with/withoutload | (km/h) | 4.0/4.2 | 4.0/4.2 |
Lifting speed,with/without load | (mm/s) | 92/136 | 92/136 |
Lowering speed,with/without load | (mm/s) | 112/98 | 112/98 |
Max.gradeability laden/unladen | (%) | 6/8 | 6/8 |
Servicebrake |
| Electro magnetic brake | Electromagnetic brake |
DRIVE and BATTERY |
|
|
|
Drive motor,output S260min | (kW) | 0.75 | 0.75 |
Liftmotor rating at S315% | (kW) | 2.2 | 2.2 |
Battery aocordingtoDIN43531/35/36A,B,C,no |
| no | no |
Battery voltage/ratedcapacity | (V/Ah) | 2×12/100 | 2×12/100 |
Batteryweight(±5%) | (kg) | 2×27 | 2×27 |
OTHERS |
|
|
|
Noise level at operator'sear | (dB(A) | 69 | 69 |
Steering type |
| Mechanical steering | Mechanical steering |
