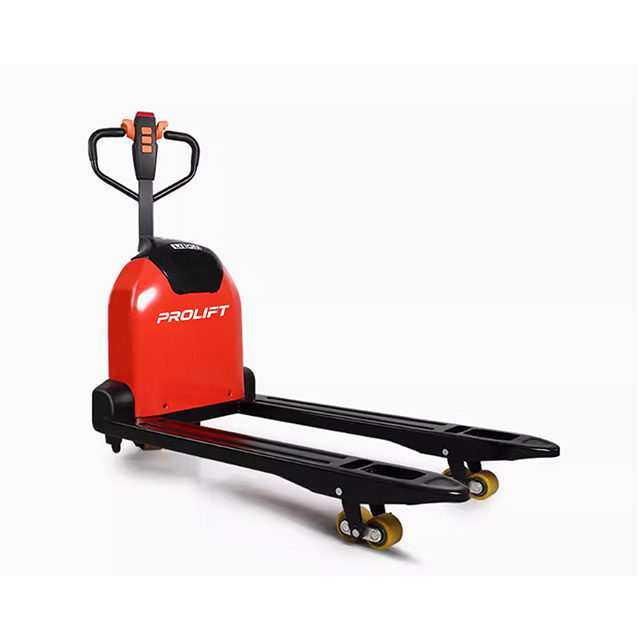

MODEL |
| PLPT15LI3 |
Operation |
| Pedestrian propelled |
Rated traction weight | Q(kg) | 1500 |
Load center | c(mm) | 600 |
Axle center to fork face | x(mm) | 944 |
Wheel base | y(mm) | 1190 |
WHEELS |
|
|
Service weight without battery | kg | 138 |
Wheels type |
| Polyurethane |
Driving wheel size | φ×w(mm) | φ210×70 |
Bearing wheel size | φ×w(mm) | φ80×60 |
Wheels, number (front/rear, x=driven) |
| Lx/4 |
Track width, rear, loading side | b11(mm) | 400/535 |
DIMENSIONS |
|
|
Lift height | h3(mm) | 200 |
Height drawbar in drying position (min./max.) | h14(mm) | 725/1145 |
Lowered height | h13(mm) | 85 |
Overall length | l1(mm) | 1550 |
Length to fork face | l2(mm) | 400 |
Overall width | b1/b2(mm) | 550/685 |
Fork dimensions | s/e/l(mm) | 50/150/1150 |
Width of forks | b5(mm) | 550/685 |
Min. ground clearance | m2(mm) | 35 |
Aisle width (1000×1200 pallets across forks) | Ast(mm) | 1750 |
Aisle width (800×1200 pallets along forks) | Ast(mm) | 1800 |
Min. turning radius | Wa(mm) | 1345 |
PERFORMANCE |
|
|
Travel speed (with/without load) | (km/h) | 4.2/4.5 |
Max. gradeability (laden/unladen) | % | 5/10 |
Service brake |
| electro magnetic brake |
DRIVE and BATTERY |
|
|
Drive motor output (SZ60 min.) | (kW) | 0.75 |
Lift motor rating (S315%) | (kW) | 0.8 |
Battery (DIN 43531/35/36A,B,C) |
| no |
Battery voltage/rated capacity | V(Ah) | 24/20 | 24/30 | 24/40 |
Battery weight (±5%) | (kg) | 5.5 | 7 | 8.2 |
OTHERS |
|
|
Type of drive control |
| DC speed control |
sound pressure level at the driver's ear | dB(A) | ≤70 |
Steering type |
| mechanical steering |
Controller |
| CURTIS |
