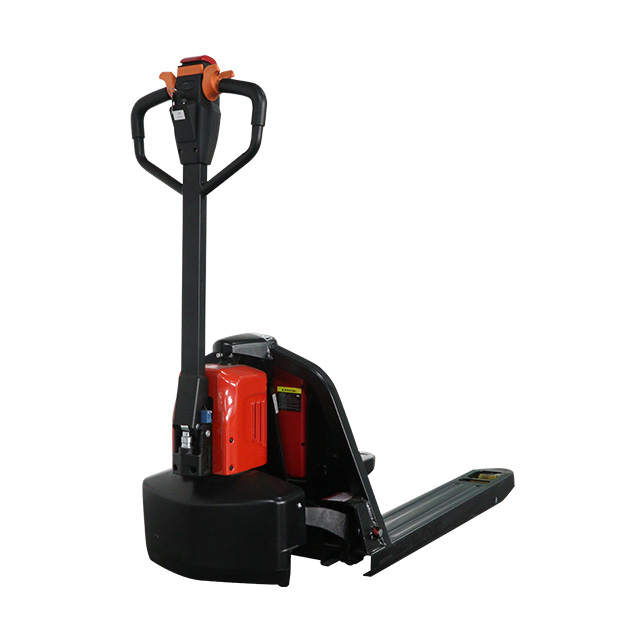

| MODEL |
| PLPT-20LIS |
| Operator type |
| Pedestrian propelled |
| Rated capacity | Q(kg) | 2000 |
| Lift height | h3(mm) | 200 |
| Service weight with battery | kg | 146 | 149 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 944 |
| Wheel base | y(mm) | 1243 |
| Controller |
| CURTIS |
| WHEELS |
|
|
| Tyre type |
| Polyurethane |
| Tyre size,driving wheels | φ×w(mm) | φ210×70 |
| Tyre size,loading wheels | φ×w(mm) | φ80×60 |
| Wheels,number front/rear(x=drven) |
| 1x/4 |
| Track width,rear,loading side | b11(mm) | 400/535 |
| DIMENSIONSONS |
|
|
| Overall length | I1(mm) | 1603 |
| Length to fork face | 12(mm) | 453 |
| Overall width | b1(mm) | 550/685 |
| Fork dimensions | s/e/(mm) | 50/150/1150 |
| Width of forks | b5(mm) | 550/685 |
| Lowered height | h13(mm) | 85 |
| Min.Ground clearance | m2(mm) | 35 |
| Height drawbar in driving positition min./max. | h14(mm) | 740/1160 |
| Aisle width with pallet 1000×1200 across forks | Ast(mm) | 1804 |
| Aisle width with pallet 800×1200 along forks | Ast(mm) | 1854 |
| Min.Tuming radius | Wa(mm) | 1398 |
| PERFORMANCE |
|
|
| Travel spees,with/without load | (km/n) | 4.2/4.5 |
| Max.gradeability laden/unladen | (%) | 5/10 | 5/10 |
| Service brake type |
| Electromagnetic brake |
| DRIVE and BATTERY |
|
|
| Drivemotor,out put S260 min | (KW) | 0.75 |
| Lift motor rating at S315% | (KW) | 0.8 |
| Battery acoording to DIN 43531/35/36A,B,C,no |
| No |
| Battery voltage/rated capacity | (V/Ah) | 48/20 | 48/30 |
| Battery weight(±5%) | (kg) | 10.2 | 13.2 |
| charger specfication |
| 48V/5A |
| OTHERS |
|
|
| Type of drive control |
| DC speed control |
| sound pressure level at the driver's ear | dB(A) | ≤70 |
| Steering type |
| Mechanical steering |
